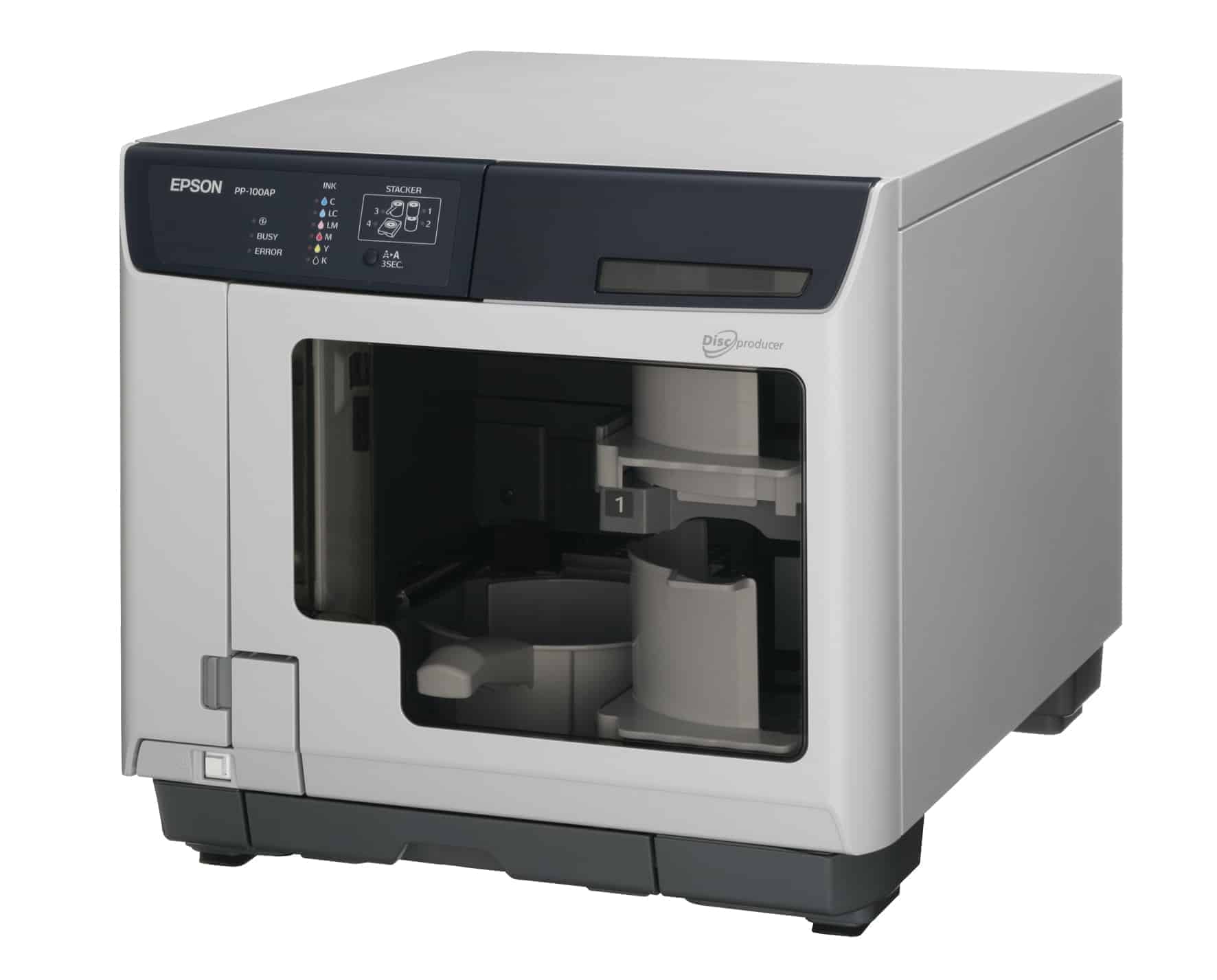

Epson DiscProducer PP-100AP
The reliable Epson DiscProducer PP-100AP print-only model, Autoprinter, is ideal for use with high-speed duplication systems. It has all the features you need to print up to 100 customized discs at a time at a fast print speed of 95 discs per hour. And with its vibrant six-colour inkjet printing, precision AcuGrip? robotic arm and easy-to-use software you get the high quality results you're looking for every time.
KEY FEATURES & BENEFITS
Compatible with Mac and Windows OS
Best–in–Class Printing The Epson Discproducer features a built–in Epson inkjet printer with Epson’s patented MicroPiezo technology. Using six colours instead of the common four, it delivers the highest print quality available in its class for crisp, clear text and vibrant graphics at up to 1440 x 1440 dpi resolution. In addition, ink level status is shown with a LED readout for each colour to prevent printing without ink.
Best–in–class Cost per Disc Thanks to Epson's individual inks system, the cost of each produced media is low as you only need to replace the colour used and, depending on the print image, you can produce over 1,000 discs from one set of cartridges. And when a cartridge becomes empty, the PP-100AP automatically stops printing until it’s replaced to avoid miss-prints.
The Epson Discproducer also provides you with more affordable disc duplication and printing. Cost per Disc calculations are based on Epson's Internal Testing with a set of new ink cartridges. For further details please see Disc yields page....More.
Cost-effective mass printing
AcuGrip™ Built to Perform
Unlike other disc publishers, the Epson Discproducer features patented AcuGrip picking technology which ensures that only one disc is placed in the drive or printer even if two are stuck together. The arm has a guide that places it in the centre of the disc. Then three independently powered fingers extend to separate the top disc from the remaining discs. Finally the peel off lever (or kicker lever) lifts the top disc for transportation. If more than one disc is lifted, they will be put in the reject stacker or the system will indicate an error has occurred. This technology not only increases the life of the product, but helps protect against the interruption of unattended production runs due to mechanical blockage.
Micro Piezo Print Head
MicroPiezo® print heads are at the heart of every Epson ink jet printer. These print heads spray ink through microscopic nozzles, or holes on the print head. Each of these nozzles has tiny, piezo electric elements, which vibrate tens of thousands of times per second, allowing the nozzle to fire ink droplets onto the disc at extremely rapid rates. No heat is involved in the printing. This ensures greater accuracy when firing ink droplets precisely onto the disc. And, it gives the printer greater control over ink droplet size. MicroPiezo technology ensures uniform, stable ink droplets with virtually no satellites or misting all of which means you get the high quality results you’d expect from Epson.
Building on the Strength and Experience of Epson Robotics
When you build industrial robots, you learn about quality, reliability and precision engineering. And Epson is a world-leader in the design, development and manufacture of such robots as for medical technology and airbag testing. That’s why our other products are so reliable – because they are built on the platform of knowledge and experience gained from the robotics environment. The Epson Discproducer™ is a perfect example. Its compact design, coupled with its dust-proof body and a minimum of moving parts, delivers precision performance, superb reliability and amazingly low running costs.
The Epson Discproducer™ PP-100AP is just as easy to operate as any office printer. The use of the software and hardware is intuitive, leaving you free to concentrate on your day-to-day work.
With the Total Disc Maker software, it is easy to create your own printed image for CD/DVD. Whether you want to use photographs, graphics, text or pre-existing templates, there are virtually no restrictions on your creativity.
In the final step, you can select the ideal quality and speed setting for your project:
- Quality: 50 media per hour
- Speed: 75 media per hour
- High-speed: 95 media per hour
- The maintenance cartridge is very easy to change.
Also available is the Total Disc Bridge Software* which allows software vendors, developers, and end users to use their own software applications for interfacing with the Discproducer.
*TD Bridge Software is available for download upon product registration.
